In the dense jungles of Vietnam, where every movement could mean life or death, MACV-SOG needed a rifle that was short, fast, and deadly. They found it in the CAR-15, a weapon that could be shouldered in a narrow bamboo thicket, fired from a helicopter skid, and carried for days behind enemy lines.
Today, decades after its heyday, I set out to build my own modern tribute to that iconic gun. This is my bastardized version, part historical homage, part practical shooter. It’s not a one-for-one clone, but it captures the XM177E2 Vietnam-era CAR-15 vibe while adding some modern reliability upgrades.
The CAR-15: A Weapon Born for Special Operations
The CAR-15 rifle was Colt’s answer to the problem of making the M16 more compact and more lethal for special operations. In 1967, Colt rolled out the XM177E1, followed by the improved XM177E2, also known as the Model 629. Its 11.5″ barrel, retractable stock, and unique 4.25″ moderator made it instantly recognizable and deadly in close quarters.
MACV-SOG, the Studies and Observations Group, became synonymous with the weapon. These were the men running top-secret recon missions into Laos, Cambodia, and North Vietnam. They were issued CAR-15s exclusively, and they carried them with pride.
“For balance, pointing, ergonomics and just plain handiness, my CAR-15 was the finest combat weapon I ever used.” – John Plaster
Specs That Made the CAR-15 a Legend
- Overall Length: 29.7” retracted, almost 10 inches shorter than a full-size M16.
- Weight: Around 5.3 lbs unloaded, light enough for days-long missions.
- Moderator: Reduced flash, increased backpressure, and gave the gun its signature bark.
- Effective Range: About ~400 meters, though most SOG firefights were at 100 yards or less.

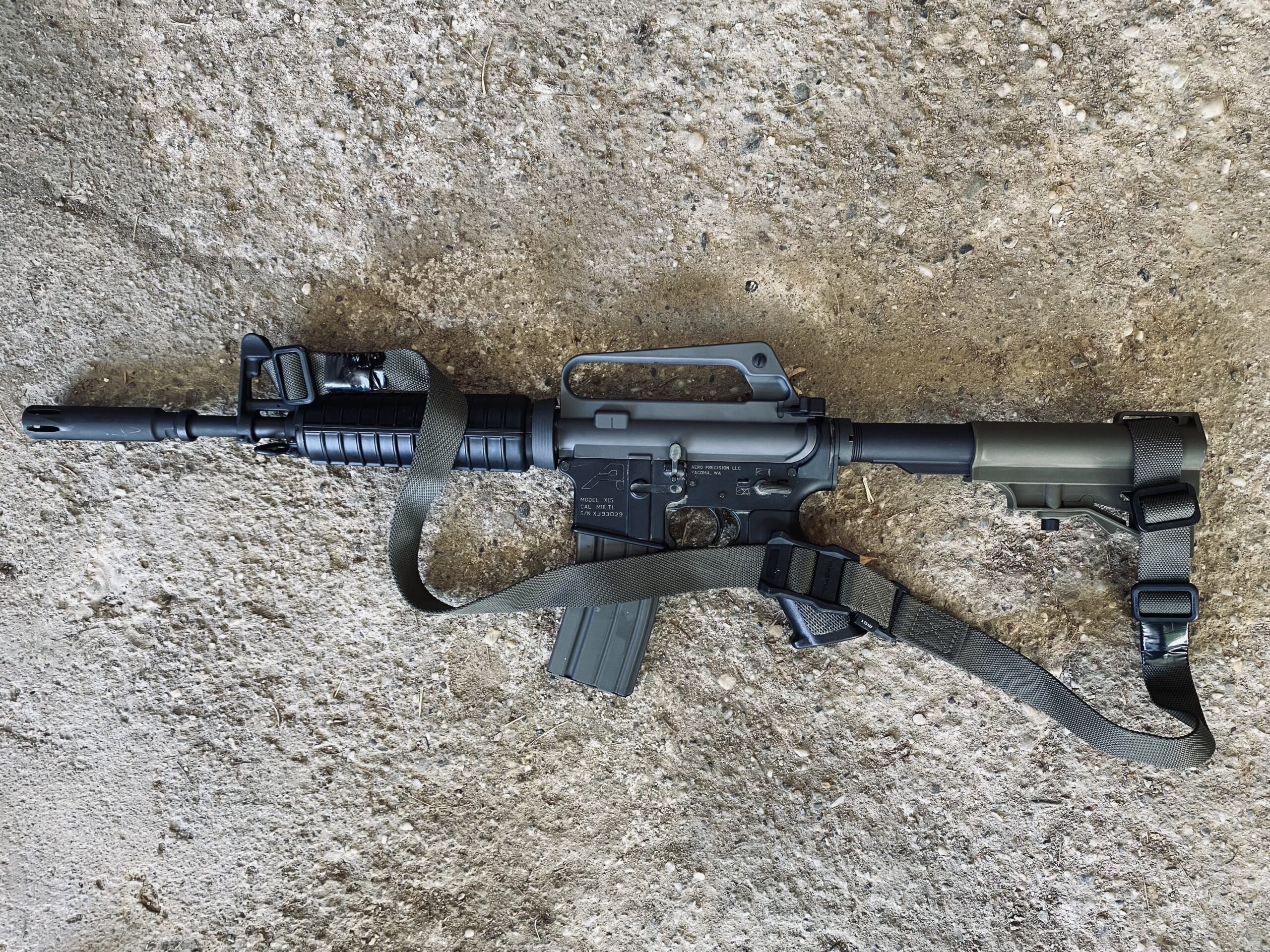

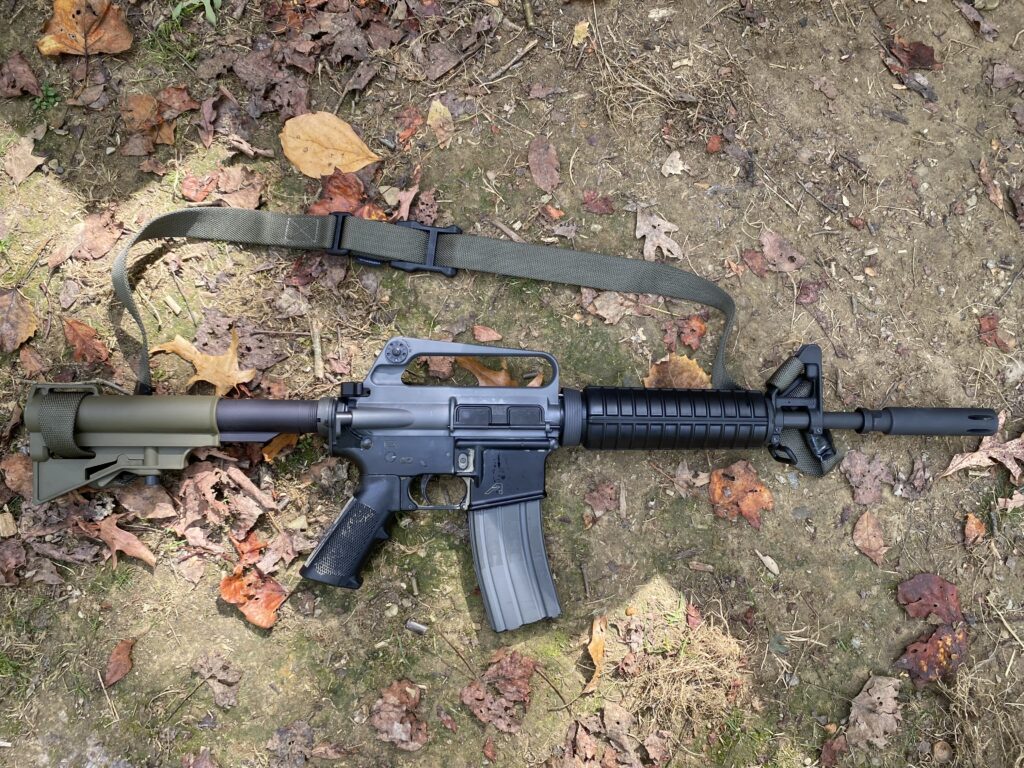

My Modern MACV-SOG Build
This is my Colt Commando Vietnam tribute build, configured as a pistol so I don’t have to SBR it. Here’s the rundown:
Making is a little Less Gasy
The CAR-15, as it is, is a fairly gasy gun, but then again, it’s a CAR-15. It’s definitely got some bark to it too. Some of that bark is due to the 11.5” barrel and CAR-15 style flash hider. Back in the day, MACV-SOG used this type of flash hider called the Dissipator to alter the sound, so that it sounded more like an AK-47, thus initially confusing the enemy and giving the smaller SOG teams an edge in firefights.
The most common buffer you’ll find in these is the standard carbine buffer, and while it works fine, it throws a fair amount of gas back in your face and has a sharp recoil impulse.
Switching to an H2 buffer immediately tamed some of that gas while leaving the recoil impulse nearly unchanged.
Wanting to push it further, I borrowed an H3 buffer from a buddy at the range, and wow, that was a game-changer. It significantly cut down the gas-to-the-face effect and smoothed the recoil in a way that made the rifle feel more controllable, especially during rapid strings of fire.
After that range session, I ordered a Griffin Armament SN-ACH charging handle and their Suppressor Optimized Buffer (essentially an H3 weight). The end result is a gun that runs flatter, cleaner, and is simply more pleasant to shoot. This is a welcome addition to any 10.5 or 11.5 build, suppressed or not.
Why I Built It This Way
The CAR-15 is as simple as it gets for a combat-effective carbine. No batteries to die, no optics to fail, just a lightweight, compact carbine proven in the jungles of Vietnam and surrounding countries such as Laos and Cambodia.
This build came together because of the H&R XM177E2 complete upper, the heart of the gun. It’s 11.5″ pencil-profile, chrome-lined 4150 CMV barrel on a carbine gas system gives the short-gun the right balance of weight, durability, and reliable function, while the M16A1 carry-handle upper, forged 7075 receiver, Carpenter 158 bolt, and full-auto bolt carrier keep it authentic. Add the XM177E2 front sight base, CAR-style flash hider with grenade ring, and you’ve got the hardware that makes this build feed and run like the real deal.
It hits what you point it at. This build pays homage to that mindset while utilizing today’s improved parts to extract every bit of performance from it.

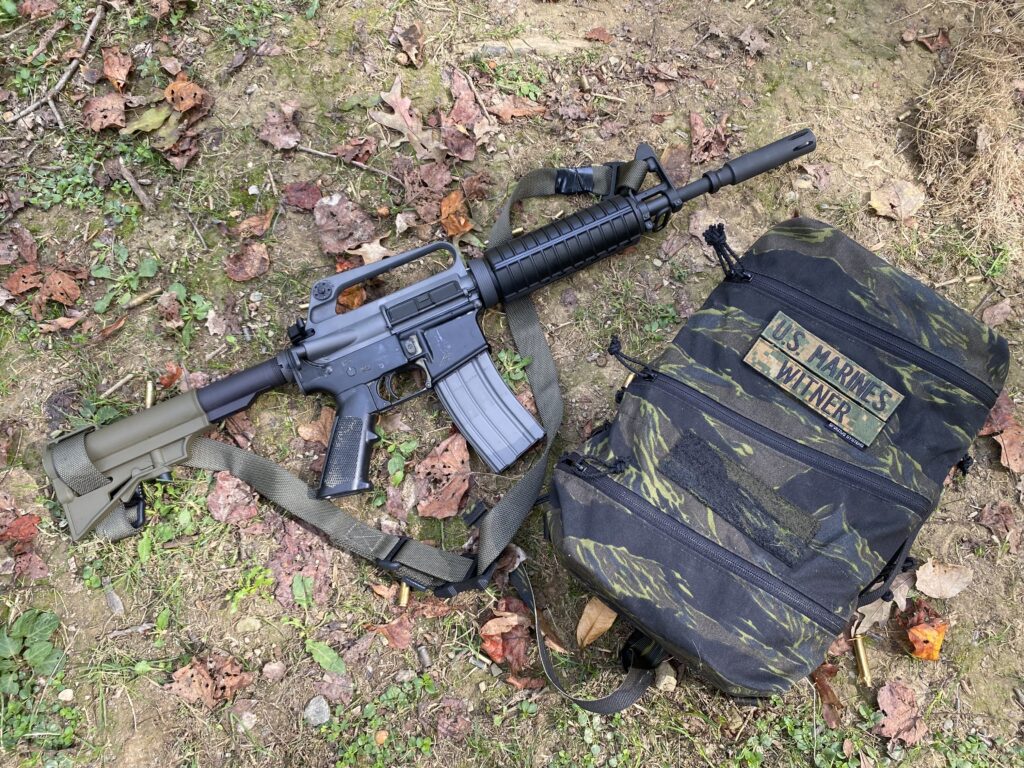

Support Kit: Because It’s More Than the Rifle
No SOG tribute would be complete without the gear to go with it. Here’s what I keep with this gun to make it a proper field setup:
- Spiritus Systems Delta Bag (Tiger Stripe)
- Ammo Load: Plenty of M855 ammo
- Smoke Grenades & Perimeter Security : (3) smoke grenades and a trip wire kit with flash bangs and flares.
- SERE Kit: Knife, compass, fire starting gear, chemlight buzzsaw, snack, water purification tabs.
- Field Maintenance: Bore snake, brush, and CLP
- Medical: Compact kit for trauma care
Lessons from the Original SOG Teams
SOG guys treated their CAR-15s like tools. They trained until mag changes and malfunctions were muscle memory, firing their basic load during training so nothing surprised them on a mission.
Practical habits mattered: muzzles were taped, the safety selector switch and chamber were checked every morning to combat dew and grime, and one man carried a cleaning rod taped under his handguard for the field.
They solved reliability the simple way: new magazines for each mission. That practice reduced failures caused by bent lips, weak springs, or damaged followers. Because the issued magazines were mostly 20-rounders, teams used canteen pouches as mag pouches, stuffing them full of 20-round mags to complement the bandoleers loaded with extra magazines. Deep behind enemy lines, you couldn’t count on resupply, so extra ammo was worth the weight.
Final Thoughts
The CAR-15 is a straightforward combat carbine: short, lightweight, and tuned to perform a single job exceptionally well. From MACV-SOG’s XM177E2s in Vietnam to this modern CAR-15 build, the rule remains the same: keep it simple and adapt the kit to the mission.
